Built-in high speed 24,000 RPM spindle.
Spindle acceleration/deceleration 0 → 24,000 RPM : 1.2 sec.
Various model to meet customer’s need.
High speed ATC 20 Tool.

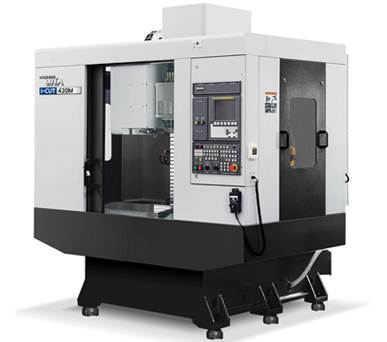

| 規(guī)格 | i-CUT380M | i-CUT380MD | i-CUT420M |
| 工作臺尺寸mm | 600x380 | 2x650x400 | 800x420 |
| 工作臺最大承載kg | 200(441) | 2x250(2x551.2) | 300(661.4) |
| 行程(X/Y/Z)(mm) | 520/380/480 | 520/360/480 | 700/420/480 |
| 快移速度(X/Y/Z)(m/min) | 56/56/56 | 50/50/56 | |
| 主軸錐度(NT) | BBT #30 | ||
| 主軸轉(zhuǎn)數(shù)(r/min) | 24000 | ||
| 主軸功率(kW) | 7 | ||
| 刀庫容量 | 20 | ||
